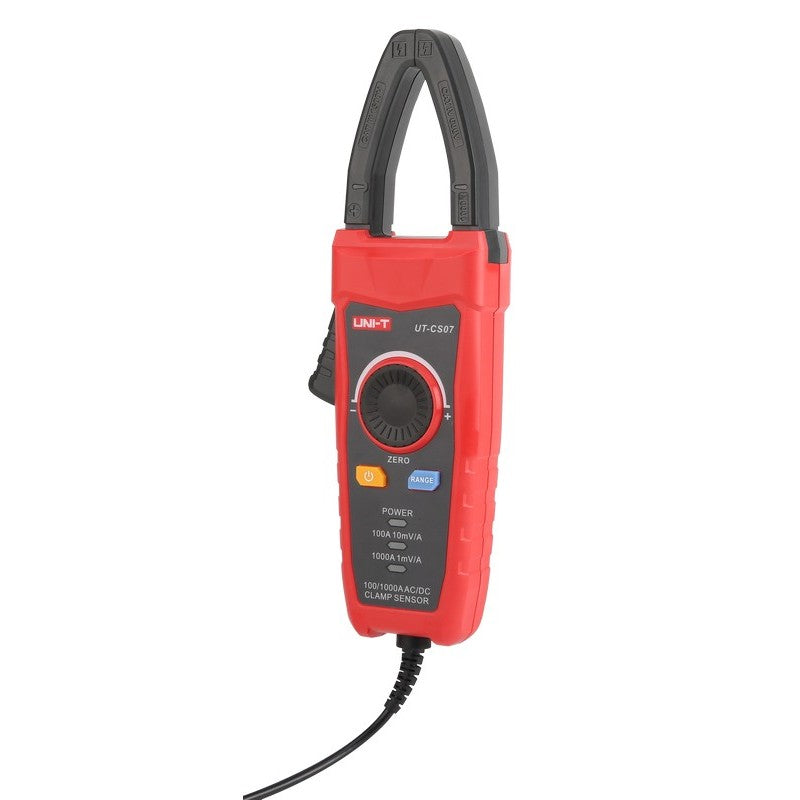

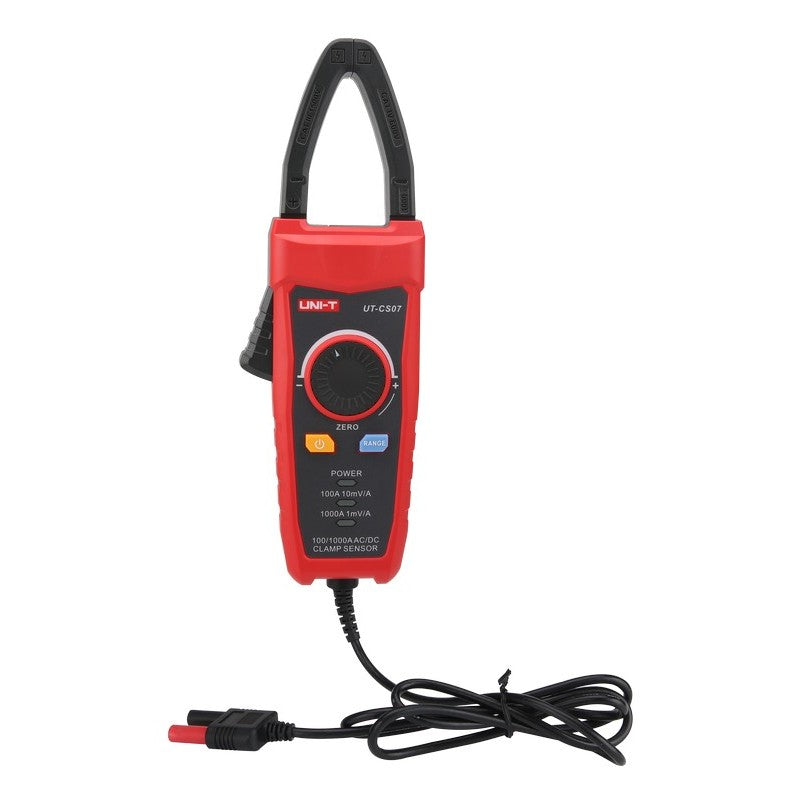

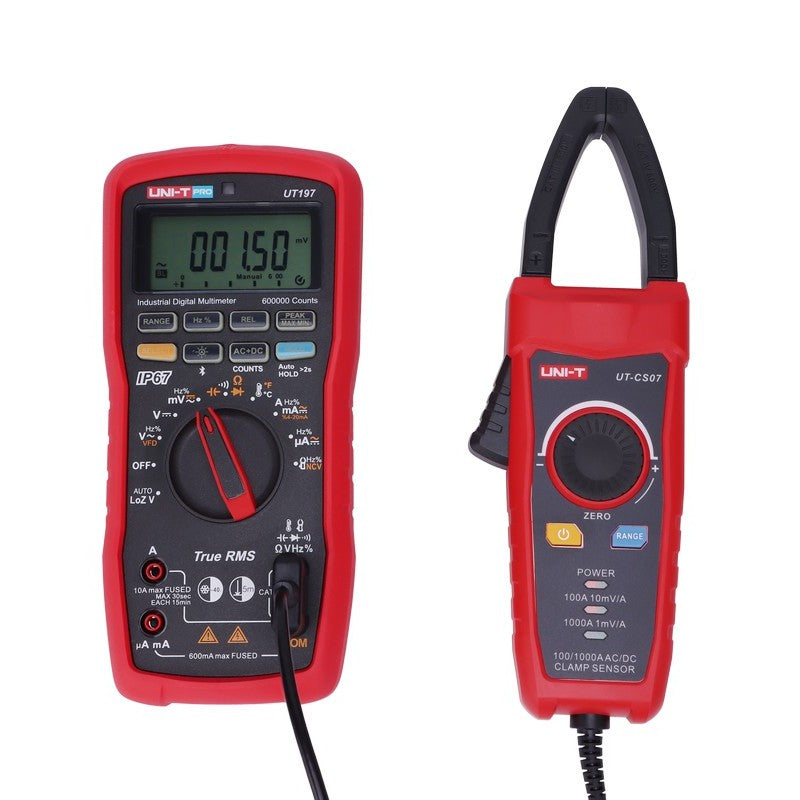

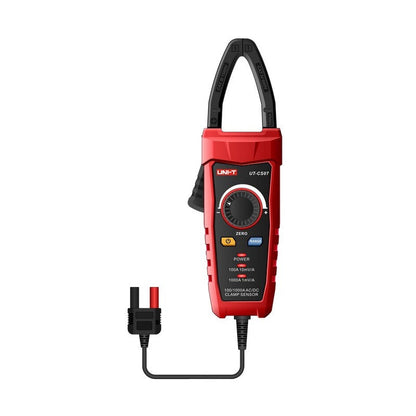

UT-CS07 1000A AC/DC Current Probe for DMMs. 1000A AC/DC current measurement, 50 Hz–400 Hz; CAT III 1500V/CAT IV 600V. For use with UNI-T multimeters and clamp meters.
Key Features
Compatible with UNI-T multimeters and clamp meters — For use with UNI-T multimeters and clamp meters.
Specifications — UNI-T UT-CS07 1000A AC/DC Current Clamp Sensor Professional Current Measurement Expansion for UNI-T Multimeters The UNI-T UT-CS07 is a high-reliability AC/DC current clamp sensor designed to expand the measurement capabilities of compatible digital multimeters.

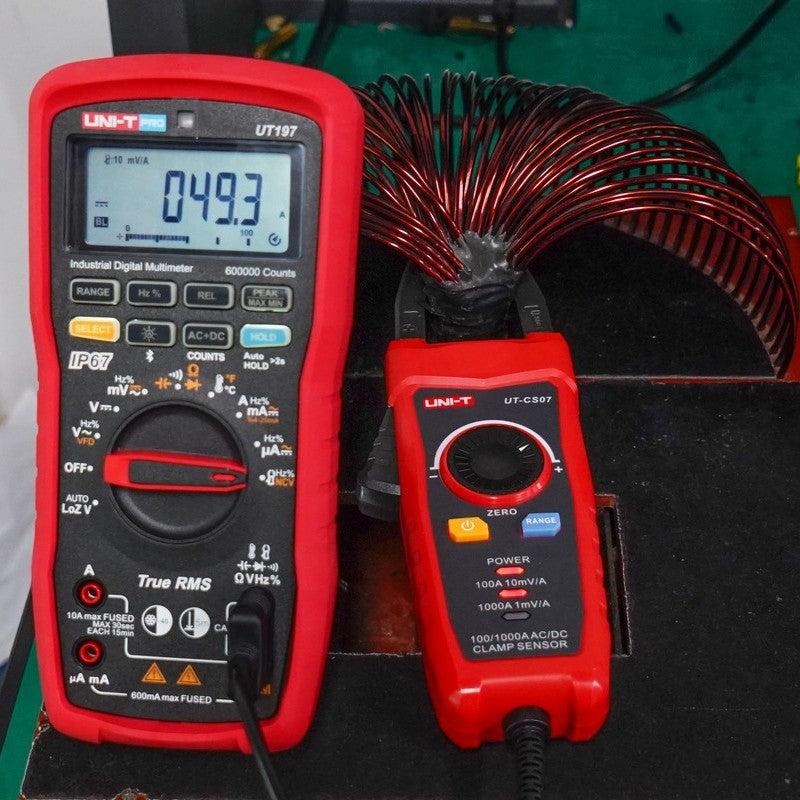

Non-Invasive Current Measurement — Clamp-on design extends multimeter current measurement range without breaking the circuit.
Specifications
Frequency Range
50 Hz - 400 Hz
CAT Rating

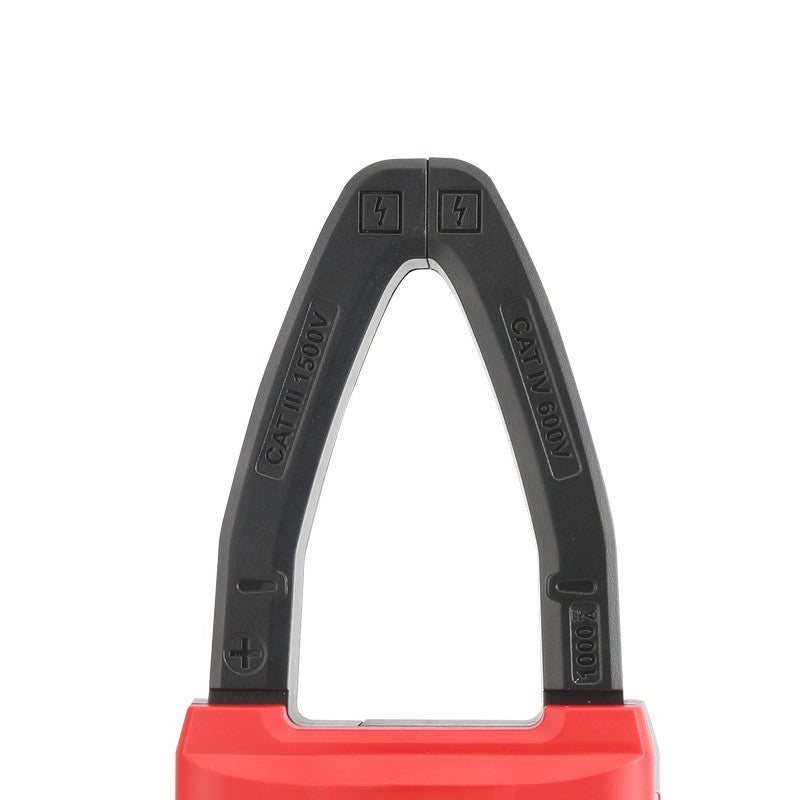

CAT III 1500 V / CAT IV 600 V
Battery
2×AA
Storage Temperature
-10 °C - 50 °C (< 80%RH)
Drop Rating
1m
Cable Length
1.1m
Operating Temperature
0 °C - 40 °C (< 75%RH)
Output Sensitivity
1 mV/A / 10 mV/A
Max Current
1000 A
DC Accuracy
±(1.5%+0.5 A) at 100 A; ±(2.0%+0.5 A) at 1000 A
AC Accuracy
±(1.5%+0.5 A) 45-200 Hz at 100 A; ±(2.0%+0.5 A) 200-400 Hz at 100 A; ±(2.0%+0.5 A) 45-200 Hz at 1000 A; ±(2.5%+0.5 A) 200-400 Hz at 1000 A
