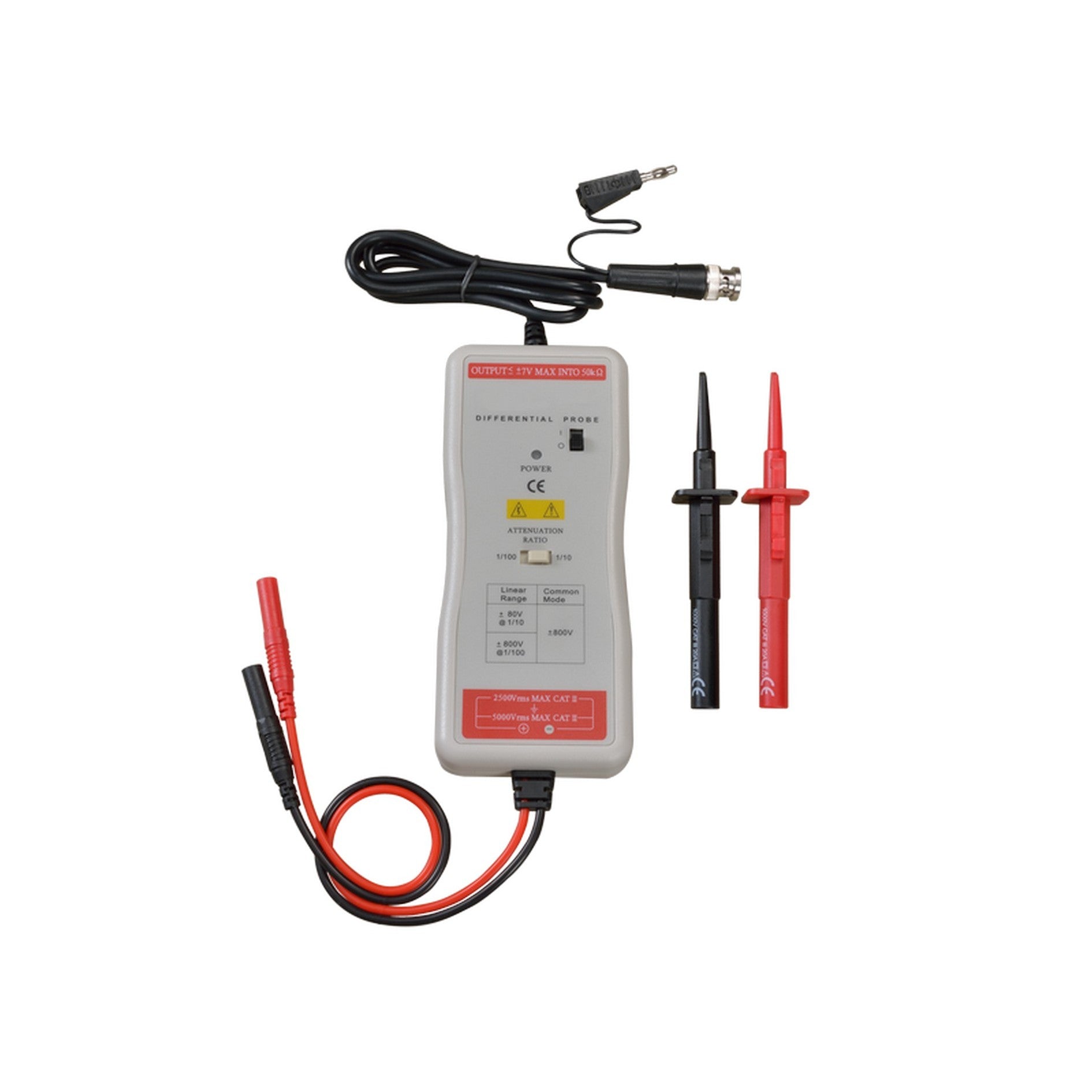

UT-P32 50 MHz 100:1/1000:1 Differential Oscilloscope Probe

UT-P32 50 MHz 100:1/1000:1 Differential Oscilloscope Probe

$820.00 USD
$820.00 USD
促销 售罄

Overview

50 MHz differential oscilloscope probe (100:1/1000:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Key Features

  • 50MHz Bandwidth — Captures signal content up to 50MHz for accurate waveform measurement.
  • 100:1/1000:1 Attenuation — Attenuation ratio suited to the probe measurement range.
  • 3000Vpp Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Specifications

CAT Rating CAT III
Dimensions 69 × 26 × 165 mm
Bandwidth 50 MHz
Probe Attenuation 100:1, 1000:1
Probe Max Voltage 3000Vpp
Rise Time ≤ 7ns
Input Capacitance 1 pF
Input Impedance 8 MΩ / 1 pF
Operating Temperature 0 °C - 50 °C
Differential Input Voltage 3000Vpp
Common Mode Voltage 5kVrms
CMRR > 80 dB @ 50 Hz, > 60 dB @ 100 kHz, > 50 dB @ 1 MHz
