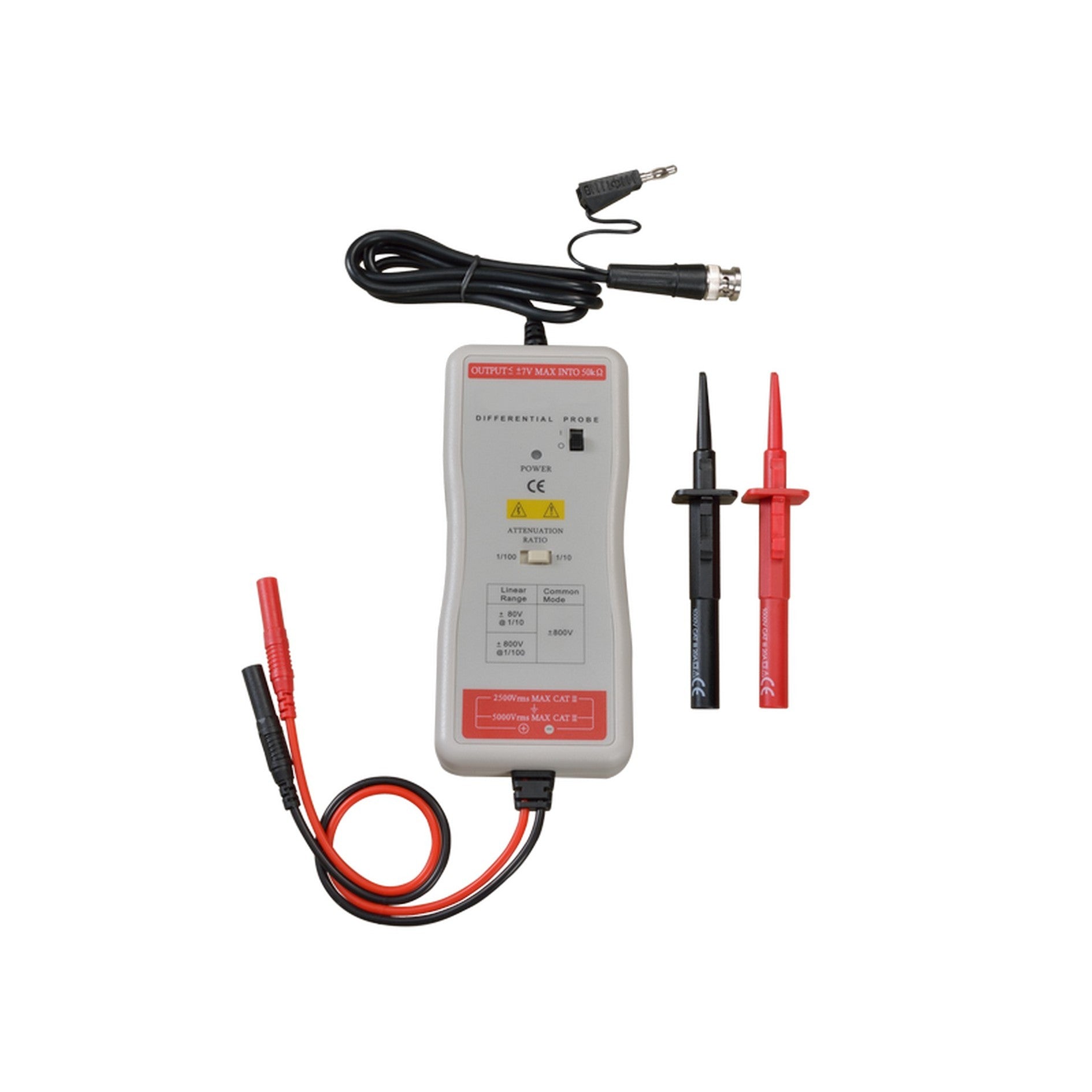

UT-P33 120 MHz 10:1/100:1 Differential Oscilloscope Probe

UT-P33 120 MHz 10:1/100:1 Differential Oscilloscope Probe

$1,396.00 USD
$1,396.00 USD
促销 售罄

Overview

120 MHz differential oscilloscope probe (10:1/100:1 attenuation) for safely measuring floating voltages across motor drives, power converters, and bridge circuits. Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Key Features

  • 120MHz Bandwidth — Captures signal content up to 120MHz for accurate waveform measurement.
  • 10:1/100:1 Attenuation — Divides the input signal for measuring higher-voltage circuits.
  • 14kVpp Maximum Input Voltage — Rated input voltage for safe operation.
  • Standard BNC Connection — Compatible with UNI-T oscilloscopes and most oscilloscopes with BNC inputs.

Specifications

CAT Rating CAT III
Dimensions 69 × 26 × 165 mm
Bandwidth 120 MHz
Probe Attenuation 100:1, 1000:1
Probe Max Voltage 14kVpp
Rise Time 3ns
Input Capacitance 1 pF
Input Impedance 20 MΩ / 1 pF
Operating Temperature 0 °C - 50 °C
Differential Input Voltage 14kVpp
Common Mode Voltage 5kVrms
CMRR > 80 dB @ 60 Hz, > 60 dB @ 100 Hz, > 50 dB @ 1 MHz

Documentation
