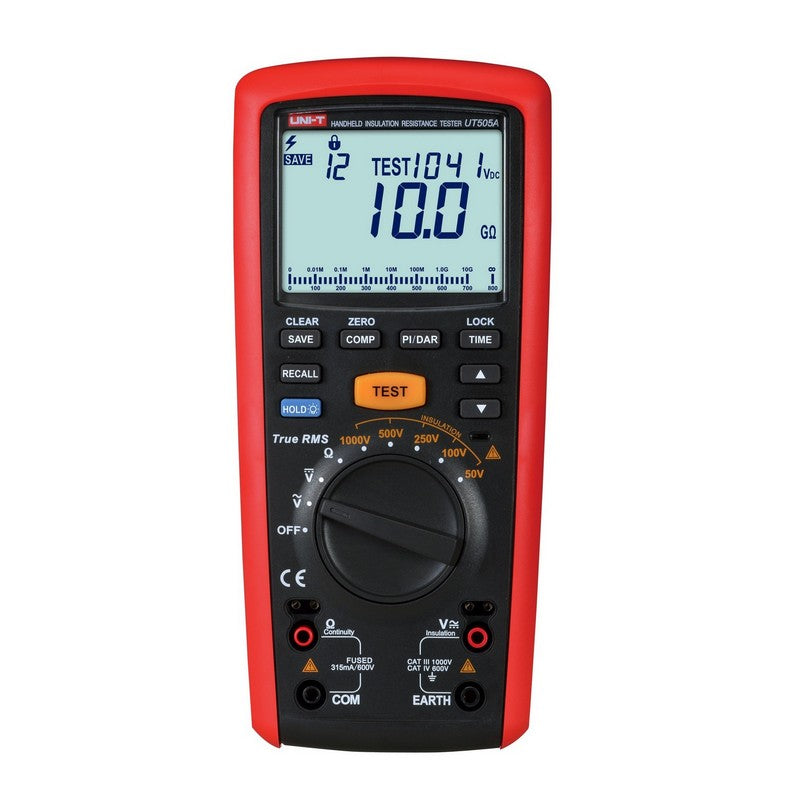

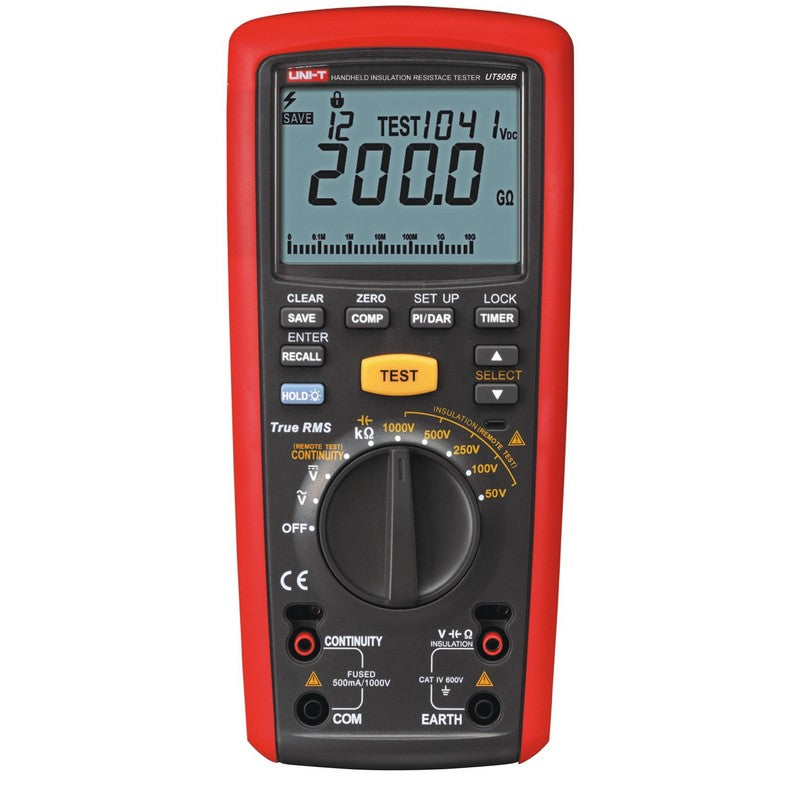

UT505A Basic Insulation Resistance DMM

The UT505A puts a CAT IV 600 V insulation tester and a True-RMS digital multimeter in one handheld. It tests insulation resistance up to 20 GΩ at voltages from 50 V to 1000 V to IEC 61557, then switches to a 6000-count multimeter for AC/DC voltage, resistance, capacitance, frequency, and low-resistance measurement — so the tool that confirms a winding is open is the same one that checks its insulation.

Insulation work includes Polarization Index and DAR diagnostics, stepped-voltage testing, and automatic discharge, with 99 result groups stored on-board. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

Key Features

• Insulation resistance up to 20 GΩ, accuracy ±(1.5%+5)
• Test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V (IEC 61557)
• True-RMS 6000-count digital multimeter built in
• AC/DC voltage to 600 V; capacitance, frequency, low and general resistance
• PI and DAR insulation diagnostics
• Stepped-voltage testing and automatic discharge
• 99-group data storage
• CAT IV 600 V safety rating

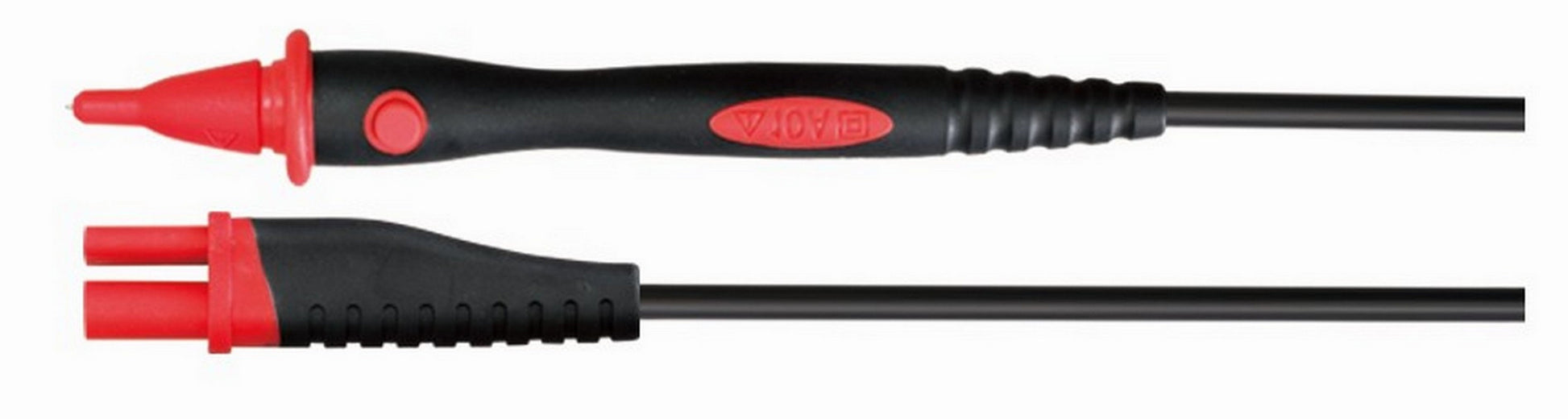

UT505A Details

Two Instruments in One

The UT505A combines a 1000 V insulation tester with a full True-RMS multimeter, so a single handheld covers both the insulation check and the routine electrical measurements around it — voltage, resistance, capacitance, frequency, and continuity-class low resistance.

Insulation Testing to 20 GΩ

Five test voltages from 50 V to 1000 V, a 20 GΩ measurement range, and IEC 61557 compliance cover insulation checks on motor windings, cables, and switchgear at low and medium voltage.

PI, DAR & Stepped Voltage

Timed PI and DAR diagnostics reveal moisture and contamination, while stepped-voltage testing stresses the dielectric in stages to surface marginal insulation a single reading would pass.

True-RMS Multimeter

A 6000-count True-RMS meter reads AC and DC accurately on distorted waveforms common around drives and non-linear loads, with the resistance, capacitance, and frequency functions a maintenance tech reaches for daily.

Safety & Field Build

Automatic discharge clears stored charge after each insulation test, and the CAT IV 600 V rating suits work on distribution systems. Storage holds 99 result groups for later review.

Compare the UT505 Series

Applications

Combined insulation and electrical checks on motor windings, cables, and switchgear; preventive maintenance where one tool needs to do both jobs; and field troubleshooting that moves between insulation testing and routine multimeter measurements.
