Overview

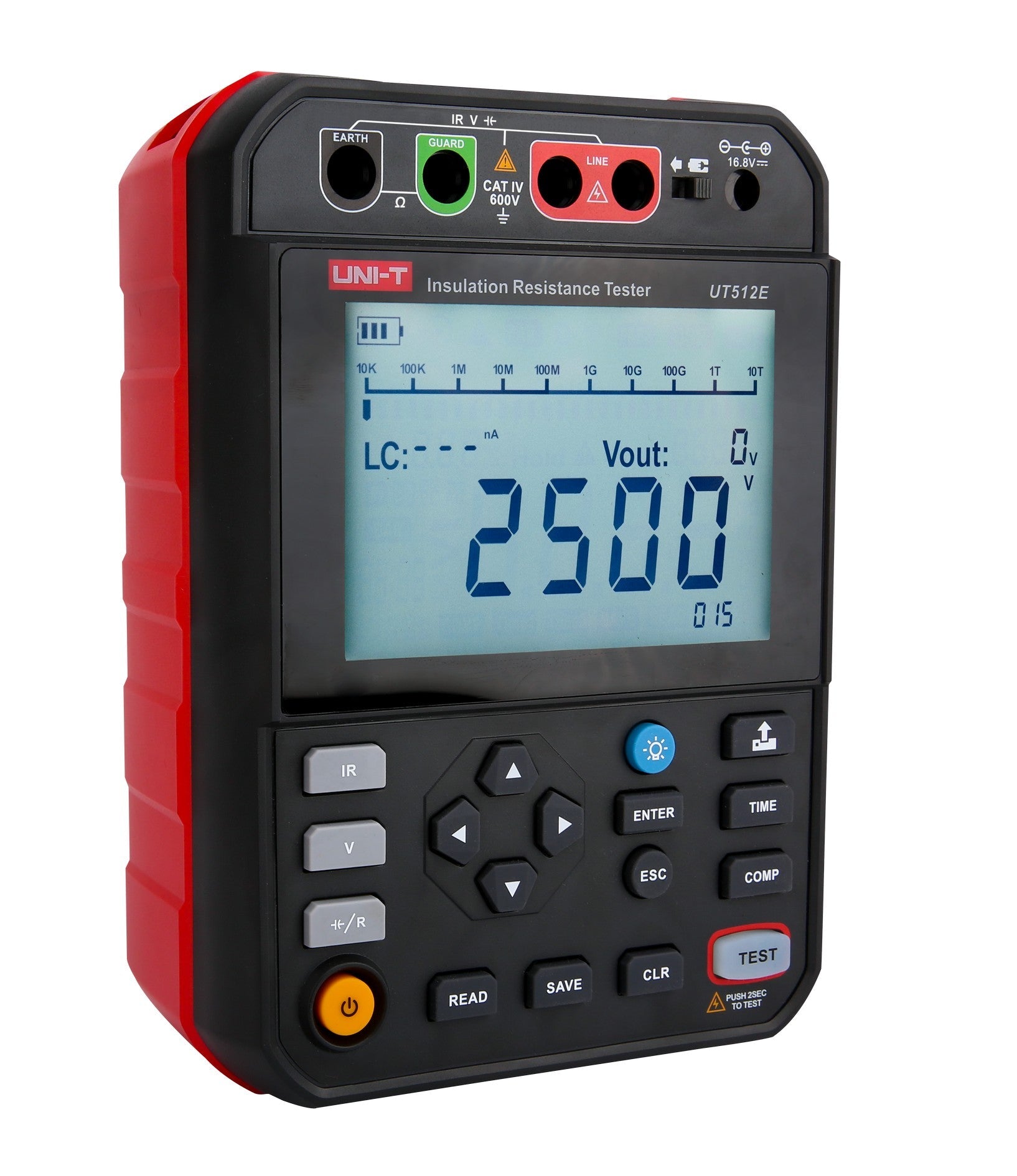

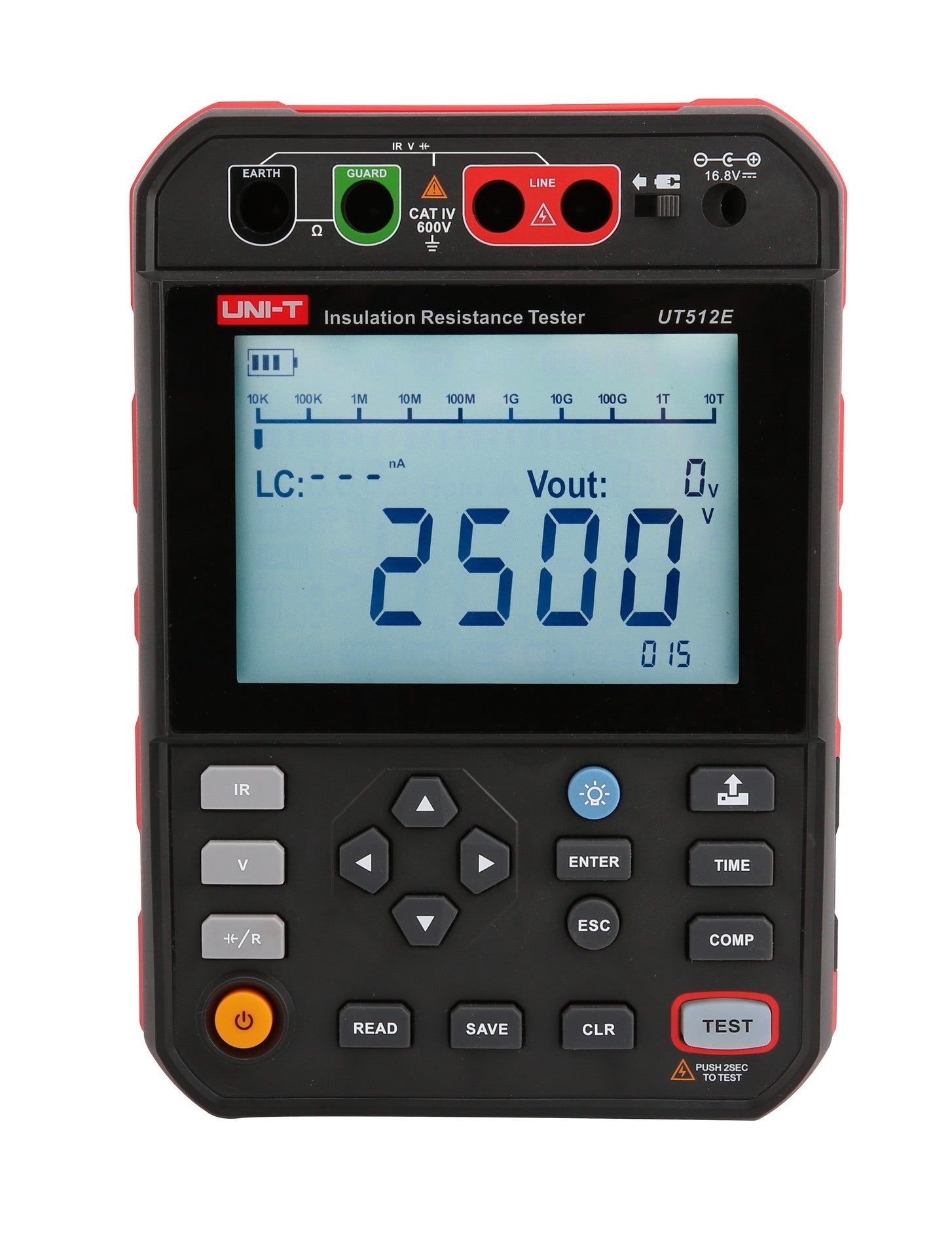

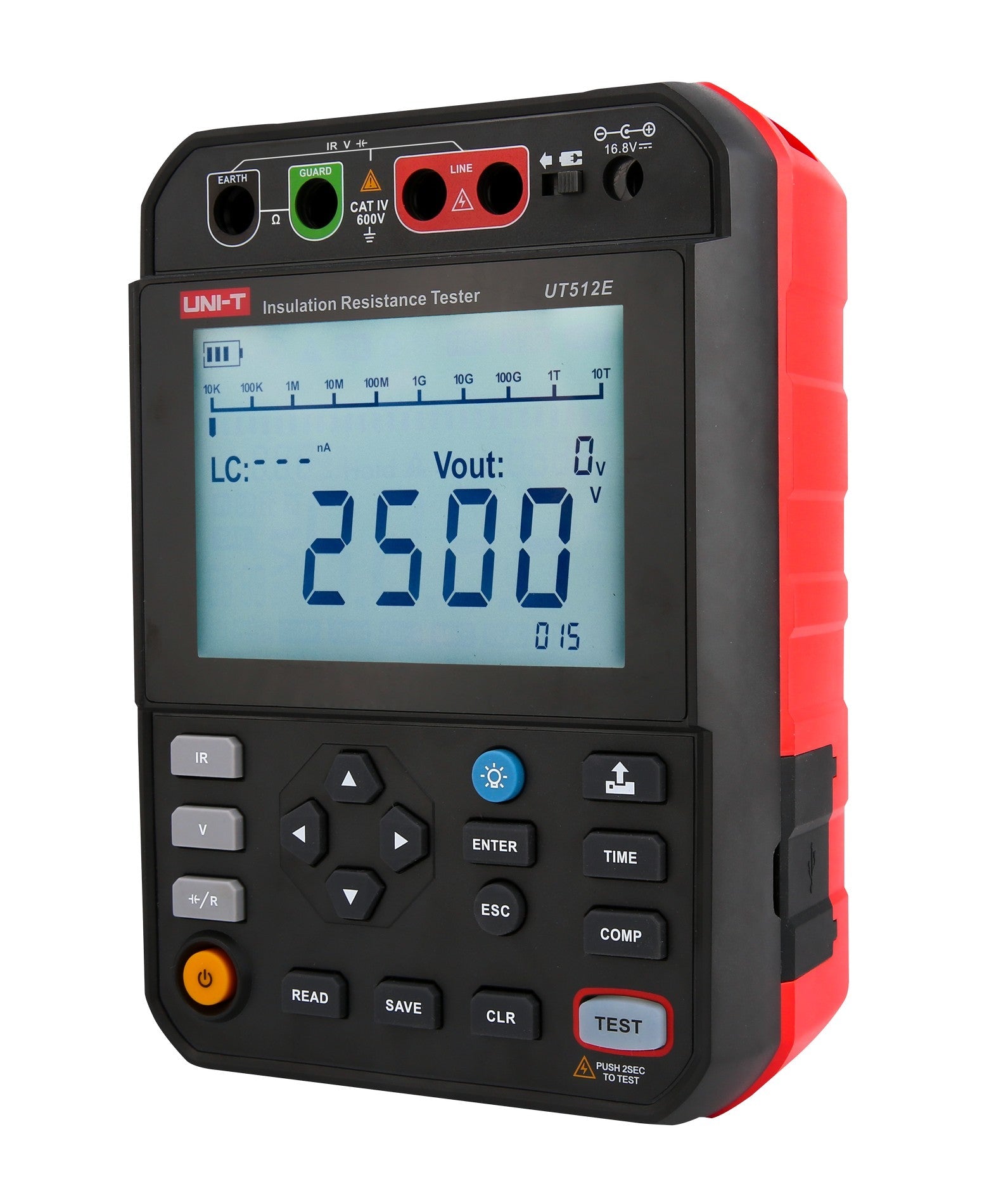

The UT512E is the 2.5 kV entry to the UT513 family, rated CAT IV 600 V. It tests insulation resistance up to 2.5 TΩ at test voltages to 2500 V — well matched to low- and medium-voltage motors, cables, and switchgear where a full 5 kV output isn't required but a wide, high-resistance range still is.

It includes Polarization Index testing, 10% stepped-voltage profiling, a comparison function, and capacitance measurement, with automatic discharge after each test. Results store 999 sets and transfer over USB, and a 14.8 V 5200 mAh rechargeable pack runs a full field day. It's backed by UNI-T's nearly 40 years of test-meter manufacturing.

Key Features

  • Test voltage output up to 2500 V
  • Insulation resistance up to 2.5 TΩ, accuracy ±(5%+5)
  • Polarization Index (PI) timed test
  • 10%-of-range stepped-voltage profiling
  • Capacitance measurement up to 2 µF
  • Comparison function for pass/fail
  • Automatic discharge and auto-ranging
  • 999-set storage with USB transfer
  • CAT IV 600 V; 14.8 V 5200 mAh rechargeable Li-ion

UT512E Details

2.5 kV Insulation Testing

Test voltages to 2500 V and a measurement range to 2.5 TΩ cover low- and medium-voltage insulation work — motor windings, cable, and switchgear — without the higher output of the 5 kV models.

PI & Stepped-Voltage Profiling

A timed Polarization Index test flags moisture and aging, and 10% stepped-voltage profiling stresses the dielectric in stages to reveal marginal insulation that a single fixed reading would pass.

Capacitance & Comparison

Built-in capacitance measurement to 2 µF supports cable and winding work, and a comparison function sets a pass/fail threshold for fast, repeatable go/no-go decisions.

Safety & Field Build

Automatic discharge clears stored charge at the end of each test. The CAT IV 600 V rating and a 14.8 V 5200 mAh rechargeable pack make it ready for industrial and utility field use.

Compare the UT513 Series

UT512E UT513A UT513B UT513C
Max test voltage 2500 V 5 kV 5 kV 5 kV
Max insulation resistance 2.5 TΩ 1 TΩ 2 TΩ 5 TΩ
Voltage stepping (10% of range) Yes — Yes Yes
PI / DAR diagnostics PI PI PI / DAR PI / DAR
Capacitance measurement 2 µF — — 0.01–15 µF
Data storage 999 sets 18 sets 999 sets 999 sets
Bluetooth app — — — Yes
Safety rating CAT IV 600 V CAT III 600 V CAT IV 600 V CAT IV 600 V

Applications

Low- and medium-voltage motor and generator winding tests; cable and feeder insulation checks; switchgear and panel maintenance; and commissioning where a 2.5 kV test voltage is sufficient.

Frequently Asked Questions

What is the UT512E's test voltage and range?

Test voltages up to 2500 V and insulation resistance measurement up to 2.5 TΩ.

How does the UT512E relate to the UT513 models?

It is the 2.5 kV entry to the same family; the UT513A/B/C step up to 5 kV output with higher resistance ranges and additional diagnostics.

Does the UT512E measure capacitance?

Yes — up to 2 µF, alongside insulation resistance, PI, and stepped-voltage testing.

Specifications

DC Voltage In 1000 V
AC Voltage In 750 V
Capacitance 2 µF
Max Resistance 2.5 TΩ
Resistance Accuracy ±(5% + 5)
Max IR Test Voltage 2500 V
Insulation Resistance Yes
Test Voltage Accuracy 0% – 20%
Short Circuit Current 5 mA
Charge Current 5 mA
Auto Ranging Yes
Comparison Function Yes
Polarization Index Yes
Step Voltage Yes
Auto Discharge Yes
Interface USB
Data Storage 999
CAT Rating CAT IV 600 V

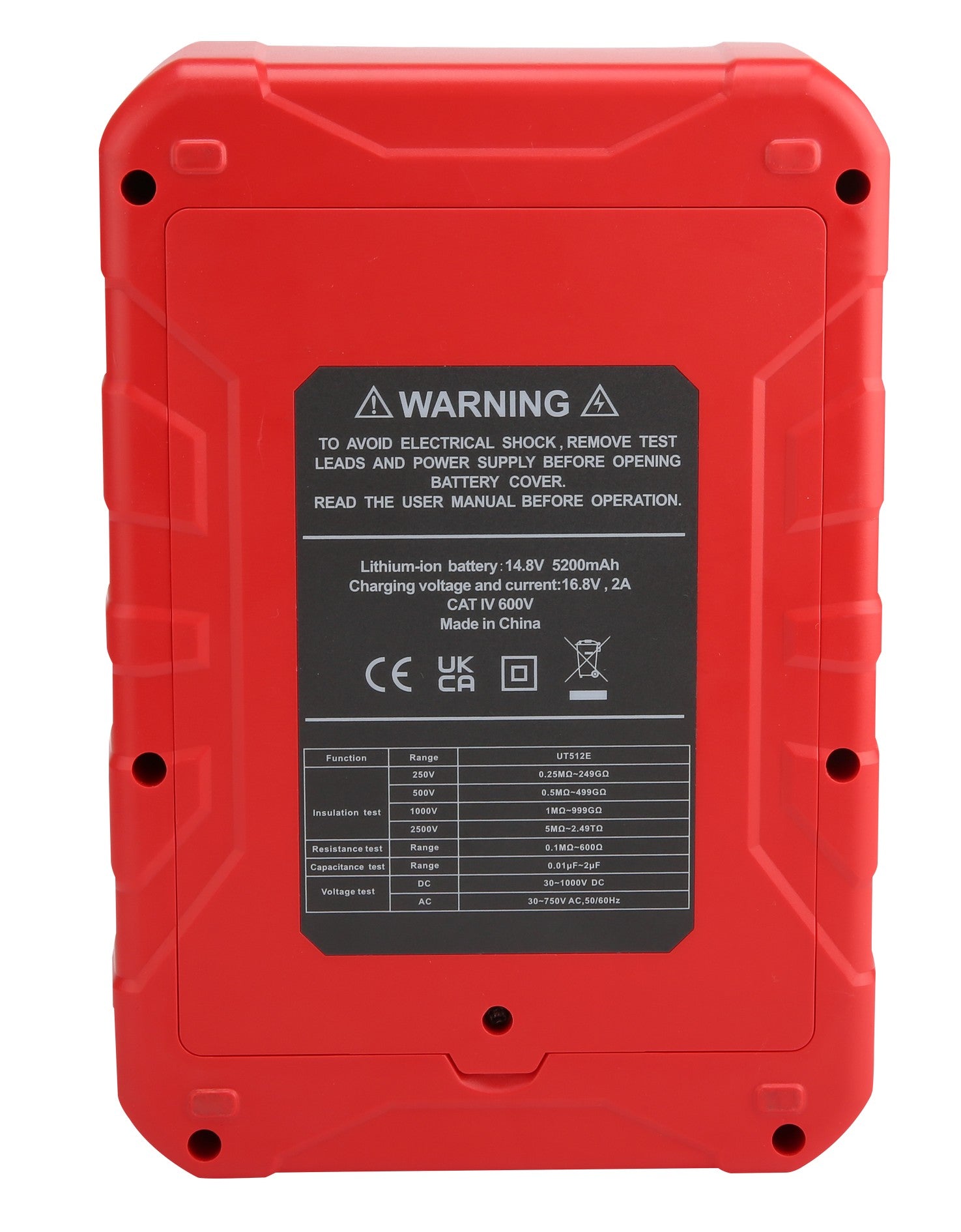

Battery 14.8 V 5200 mAh lithium
Weight 1800 g
Dimensions 238 × 166 × 90.5 mm
