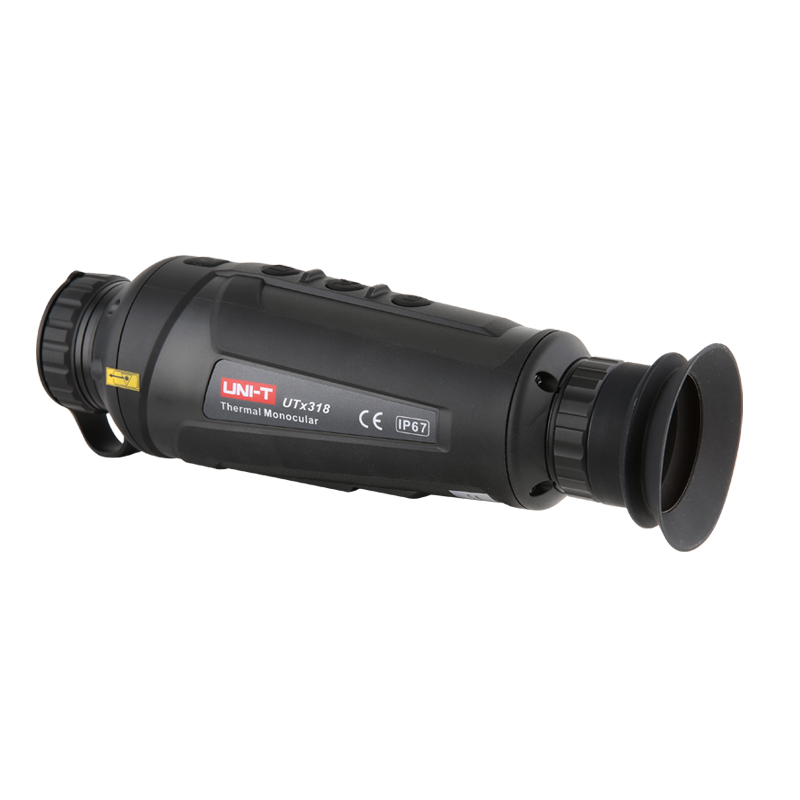

UTx318 Medium-Range Thermal Monocular
UTx318 Medium-Range Thermal Monocular
Overview
UNI-T UTx318
Versatile and Efficient for Mid-Range Detection
The UNI-T UTx318 thermal monocular is built for those who need a versatile tool for mid-range thermal detection. Its lightweight design and long battery life make it ideal for extended field use in wildlife observation, perimeter monitoring, and general security applications.
The UNI-T UTx318 offers an 18mm lens and advanced thermal sensitivity of ≤35mK, ensuring accurate detection and imaging at mid-range distances. The LCOS display provides bright, clear visuals while keeping the monocular lightweight and efficient for everyday use.
With its extended fixed rechargeable battery, the UTx318 supports longer operational times compared to models with replaceable batteries. Though it lacks range-finding capabilities and Wi-Fi, its robust thermal imaging and simplicity make it a dependable choice for both professionals and hobbyists.
Key Features
-
Display: LCOS for bright and clear visuals
-
IR Resolution: 384×288 pixels for high-quality imaging
-
Lens Focal Length: 18mm for mid-range detection
-
Thermal Sensitivity: ≤35mK for precise thermal imagery
-
Field of View (FOV): 14.6° × 11° for targeted scanning
-
Range Finding: None
-
Battery Life: Extended fixed rechargeable battery for prolonged use
-
Durability: IP67 waterproof and drop-resistant up to 2 meters
-
Additional Features: Hot Trace
Frequently Asked Questions
What is the detection range of the UTx318?
Detection range depends on the target size and thermal contrast. The UTx318's specifications list the maximum detection range for a standard 1.7m × 0.5m target. Actual usable range for identification is typically 30-50% of the maximum detection distance.
Is the UTx318 waterproof?
The UTx318 carries an IP rating for dust and water resistance. Check the specifications tab for the exact IP rating. The device is designed for outdoor use in varying weather conditions.
What's included with the UTx318?
The UTx318 ships with the monocular, carrying case, USB charging cable, lens cloth, and user manual. Check the specifications tab for the complete package contents.
Specifications
| IR Resolution | 384×288 |
| NETD | ≤ 40mK |
| Field of View | 14.6° × 11° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 50 Hz |
| Focus | Manual Focus |
| Detection Range | 944m |
| Digital Zoom | 2x, 4x / 1.0 - 4x continuous |
| Image Modes | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Laser LRF | Yes |
| Interface | USB-Type-C |
| Data Storage | Built-in 16GB |
| Display Type | LCOS |
| Display Size | 0.4in |
| Display Resolution | 1280×960 |
| Languages | English, Simplified Chinese |
| Battery | 4000 mAh rechargeable Li-ion battery |
| Battery Life | ≥ 8h |
| Charging Time | ≤ 4 hours |
| Weight | 428 g |
| Dimensions | 307.6 × 62 × 62 mm |
| IP Rating | IP67 |
| Drop Rating | 2m |
| Ambient Temperature Range | -10 °C - 50 °C |
| Ambient Humidity | 10 - 95%RH non-condensing |
