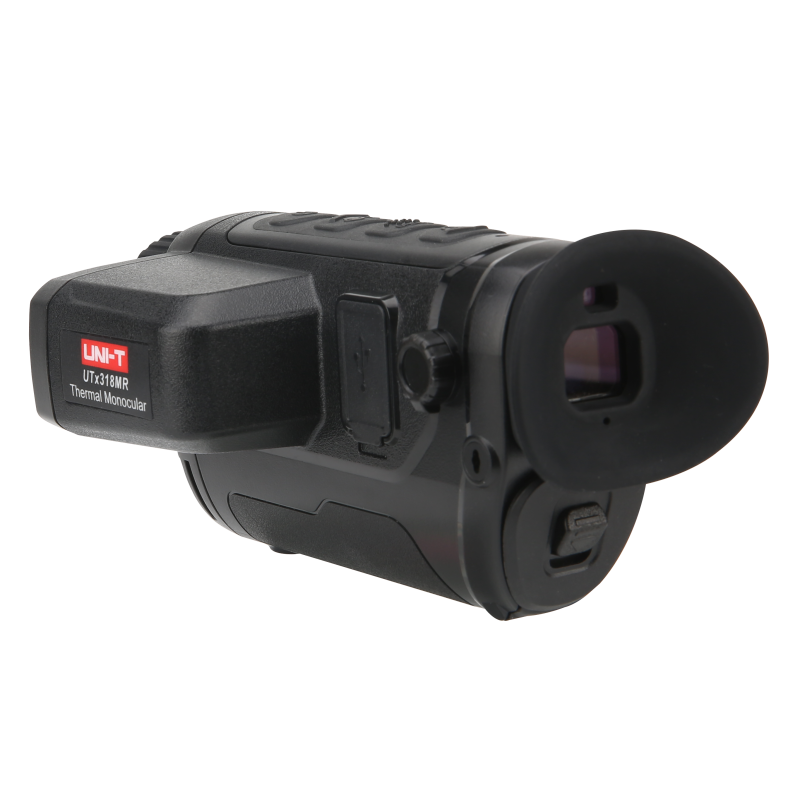

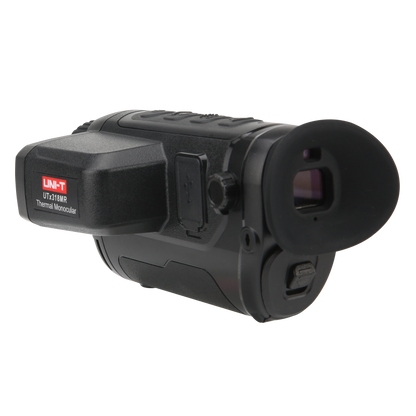

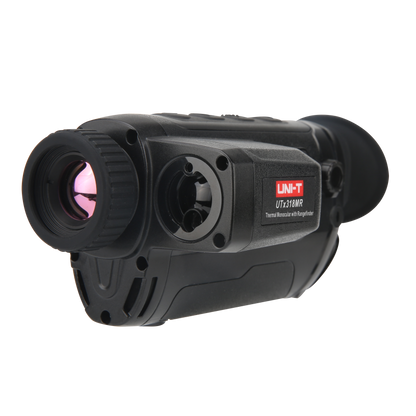

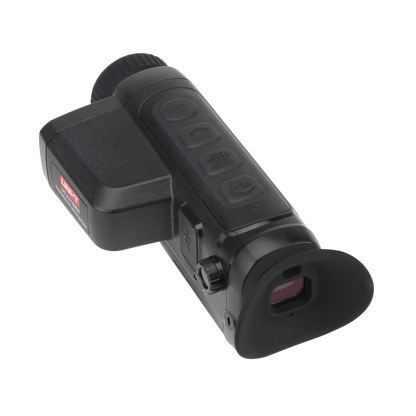

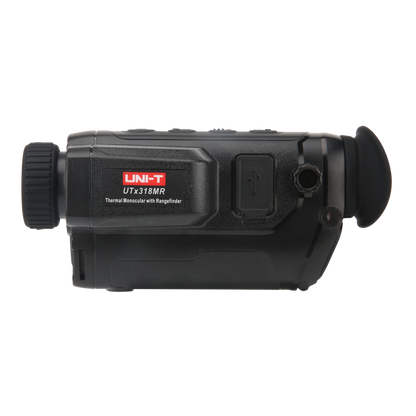

UTx318MR Medium-Range Thermal Monocular with Laser Range
UTx318MR Medium-Range Thermal Monocular with Laser Range
Overview

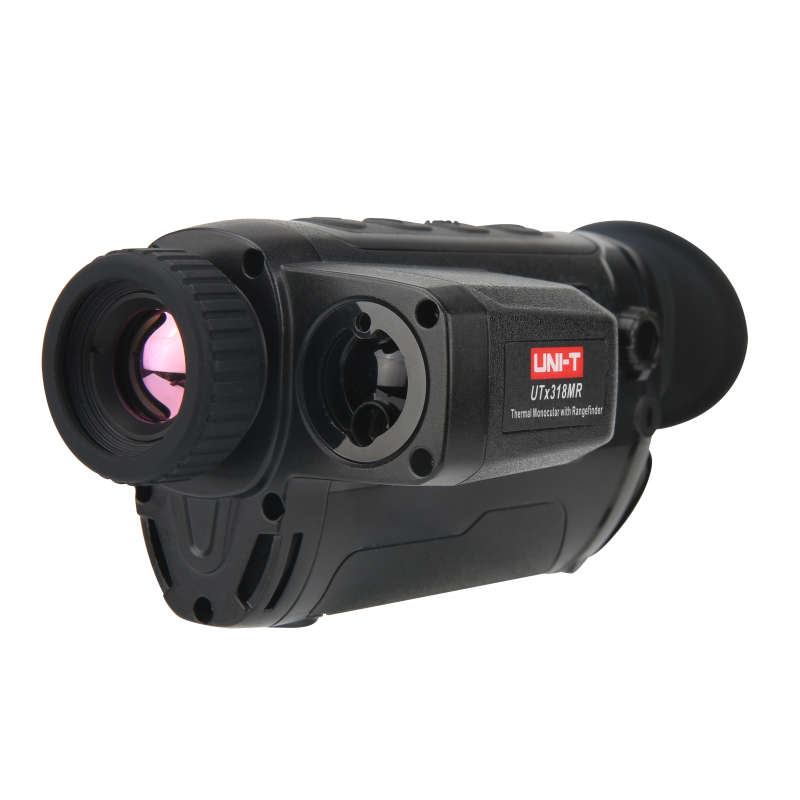

UNI-T UTx318MR
Precision and Performance for Professionals
The UNI-T UTx318MR delivers exceptional thermal imaging performance with the added benefit of precision laser range finding, making it an indispensable tool for professionals in security and search and rescue operations.
Equipped with an 18mm lens and advanced thermal sensitivity of ≤35mK, the UNI-T UTx318MR provides clear, accurate imaging for mid-range detection. Its laser range finding capabilities set it apart, allowing exact distance measurements in seconds.
Compared to stadiametric ranging, laser range finding is faster and more precise, offering unmatched accuracy for identifying and assessing heat sources in real-time. This advanced functionality makes the UNI-T UTx318MR ideal for situations where precision and speed are critical, such as during rescue missions or when securing perimeters.
Key Features
-
IR Resolution: 400×300 pixels for high-resolution imaging
-
Lens Focal Length: 18mm for mid-range detection
-
Thermal Sensitivity: ≤25mK for precise thermal imagery
-
Field of View (FOV): 14.6° × 11° for targeted scanning
-
Range Finding: Laser
-
Battery Life: 6+ hours of continuous use
-
Durability: IP67 waterproof and drop-resistant up to 2 meters
-
Additional Features: Hot Trace, Wi-Fi Live Streaming
Frequently Asked Questions
What is the detection range of the UTx318MR?
Detection range depends on the target size and thermal contrast. The UTx318MR's specifications list the maximum detection range for a standard 1.7m × 0.5m target. Actual usable range for identification is typically 30-50% of the maximum detection distance.
Is the UTx318MR waterproof?
The UTx318MR carries an IP rating for dust and water resistance. Check the specifications tab for the exact IP rating. The device is designed for outdoor use in varying weather conditions.
What's included with the UTx318MR?
The UTx318MR ships with the monocular, carrying case, USB charging cable, lens cloth, and user manual. Check the specifications tab for the complete package contents.
Specifications
| IR Resolution | 400×300 |
| NETD | ≤ 25mK |
| Field of View | 14.6° × 11° |
| Spectral Response | 8 - 14µm |
| Pixel Pitch | 12µm |
| Refresh Rate | 50 Hz |
| Focus | Manual Focus |
| Detection Range | 944m |
| Digital Zoom | 2x, 4x, 8x / 1.0 - 8x continuous |
| Image Modes | Thermal |
| Image Format | PNG |
| Video Recording | Yes |
| Video Format | MP4 |
| Laser LRF | Yes |
| WiFi | Yes |
| Mobile App | Thermal Xplorer (Android & iOS) |
| Interface | USB-Type-C |
| Data Storage | Built-in 16GB |
| Display Type | OLED |
| Display Size | 0.39in |
| Display Resolution | 1024×768 |
| Languages | English, French, German, Spanish, Italian, Russian |
| Battery | 3250 mAh detachable Li-ion battery (UT-M21) |
| Battery Life | ≥ 4h (with Wi-Fi off) |
| Weight | 357 g |
| Dimensions | 160 × 71.5 × 38.5 mm |
| IP Rating | IP67 |
| Drop Rating | 2m |
